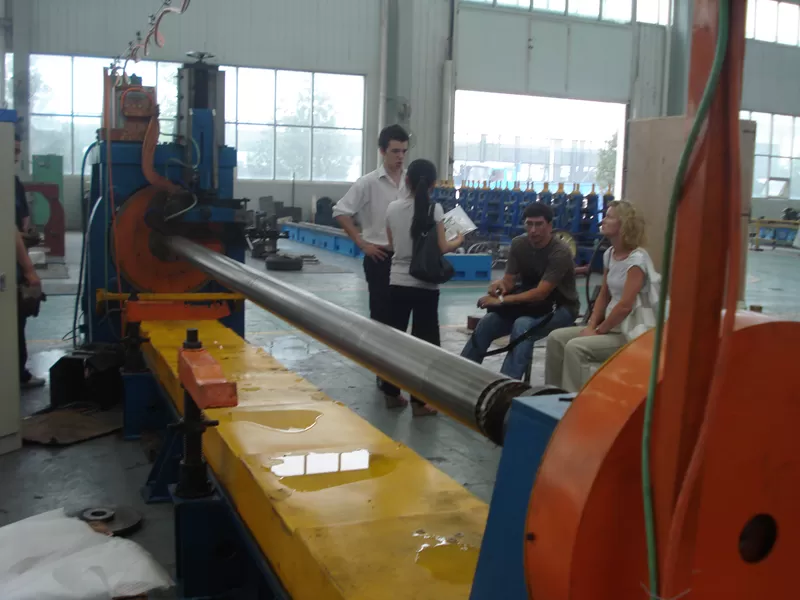

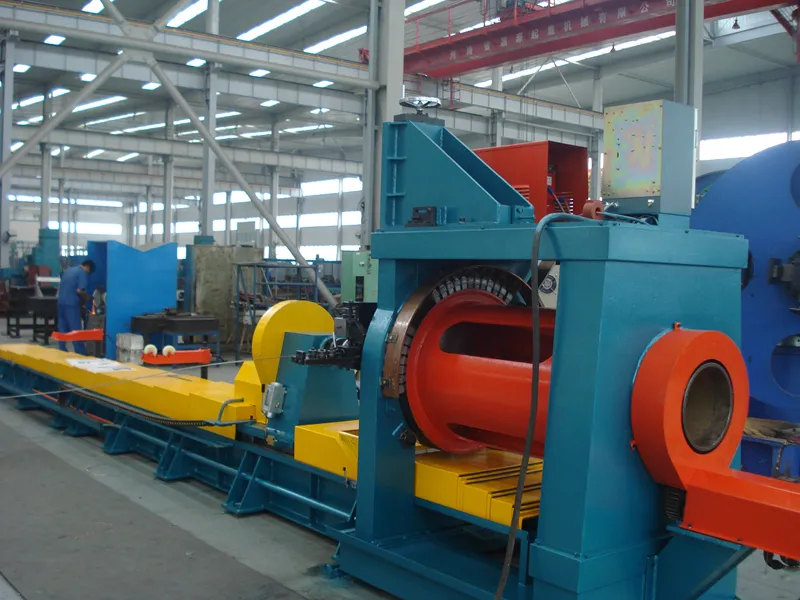

Wedge wire wrap screen welding machine HWJ480

The machine produced by our company features low noise, low energy consumption, stable performance, safe and reliable, easy to learn and operate, and stable product quality.

The machine can be designed and manufactured according to user specifications.

Other product categories:

Johnson Screen Making Machine

Screen Screen Making Machine

Welded Slotted Screen Making Machine

Wedge wire filter screen welding machine

Inquire Now

Description

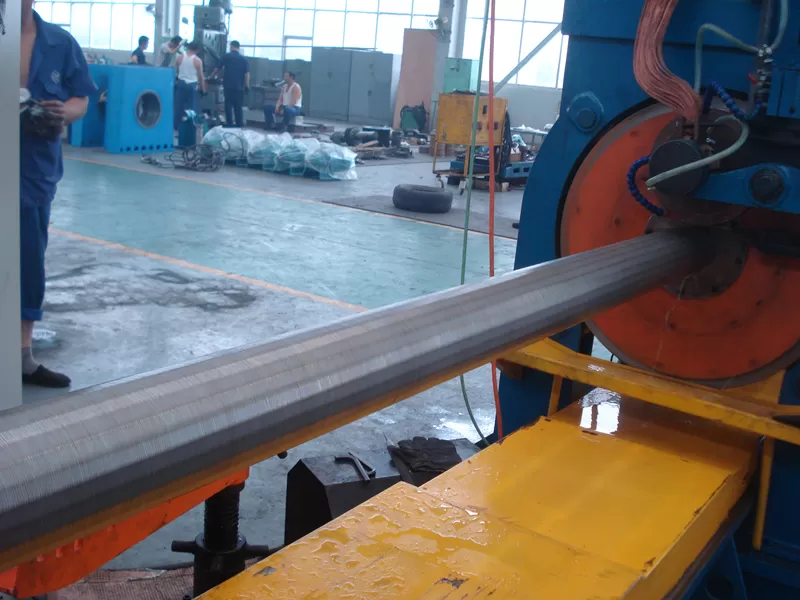

The machine is equipped with an electric control system, which can monitor and adjust the gap, running speed and length of the slotted pipes at any time without stopping.

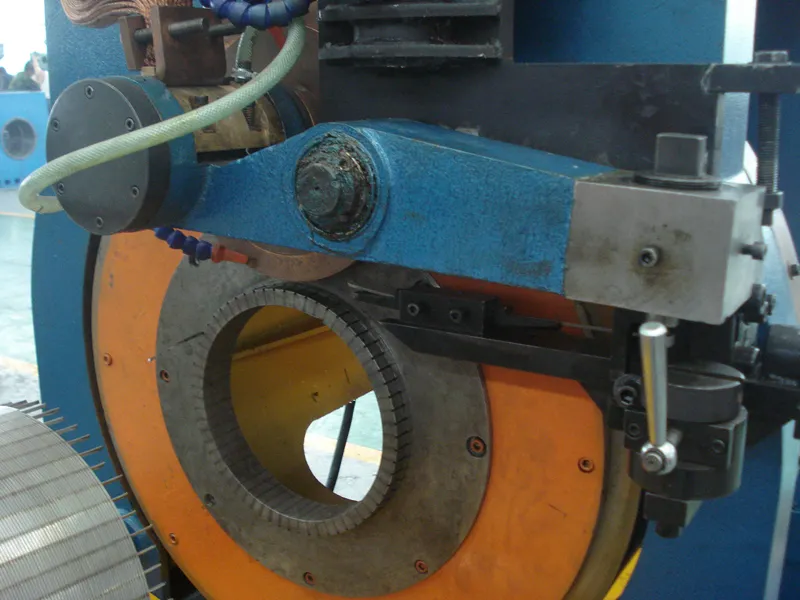

The CNC system controls the servo motor to drive the ball screw, and the support plate connects with the linear guide to move the welding gap according to the instructions and ensure the uniformity of the welding gap.

The touch screen with adjustable height makes the modification and display of the equipment parameters convenient, intuitive and simple.

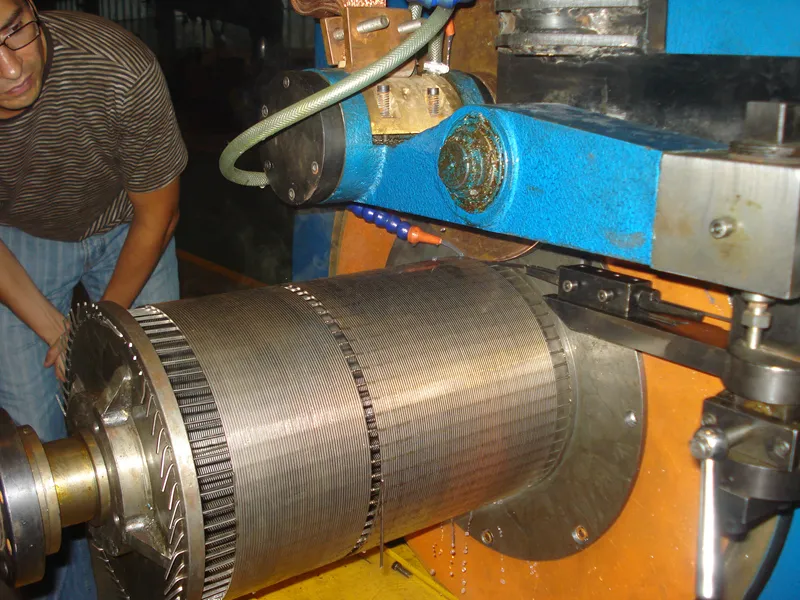

The machine is special for making Wedge Wire Screen, Filter Screen, V-shaped wire,Coanda Intake Screens, Cylindrical Screen, Rotary Screen, Flat Screen, Basket Screen,Looped Screen, Sieve Bend Screen, Intake Screen , for used in Water Treatment, Oil and Gas, Mining and Mineral, Food and Beverage, Pulp and Paper filtration field.

Main Technical Parameters

Type	HWJ480
The outer diameter of the slit pipes, mm	80-480
The length of the slit pipes, mm	2600-6000

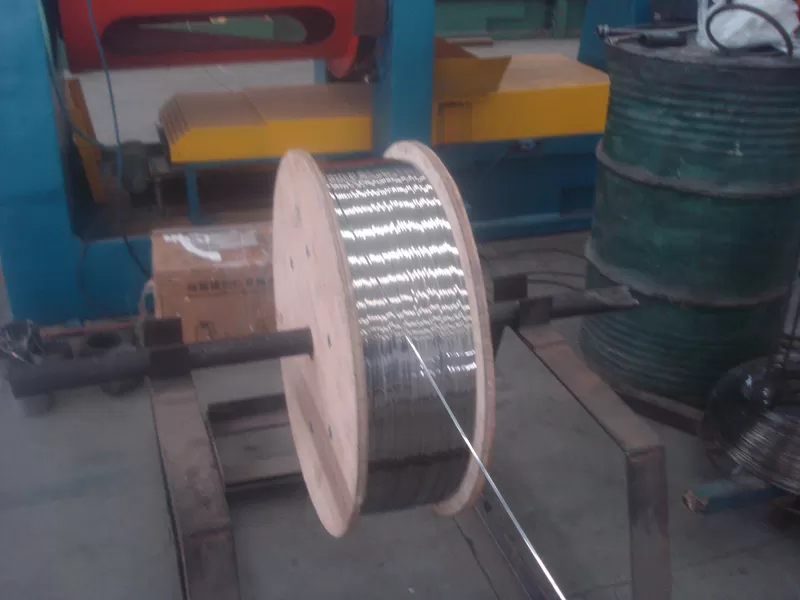

Wire size, mm	1.0×1.5-2.7×4
Wire material	Carbon/stainless steel
Servo motor	5KWx2pcs+3.5KWx1pcs
Transformer power for welding, KVA	200
Welding speed, circle/min	6-30
The size of the gap, mm	0.10-16
Slot accuracy,mm	± 0.02
