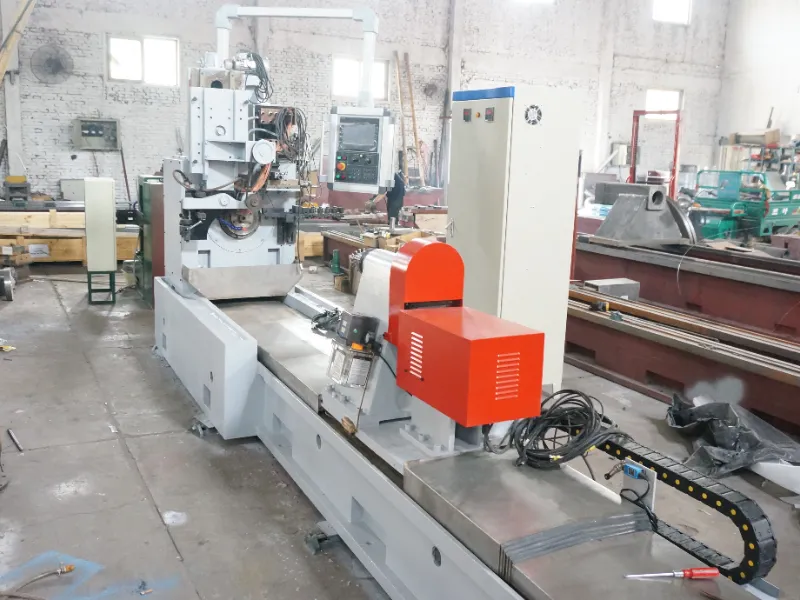

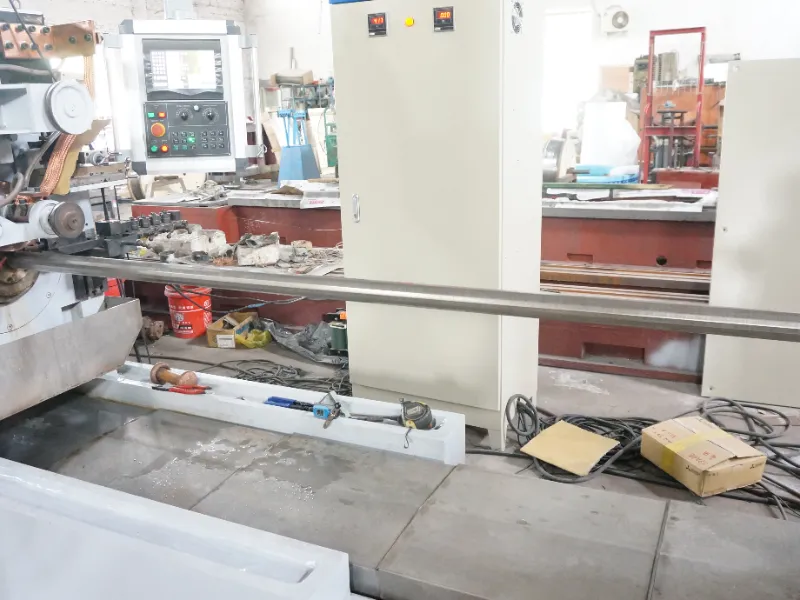

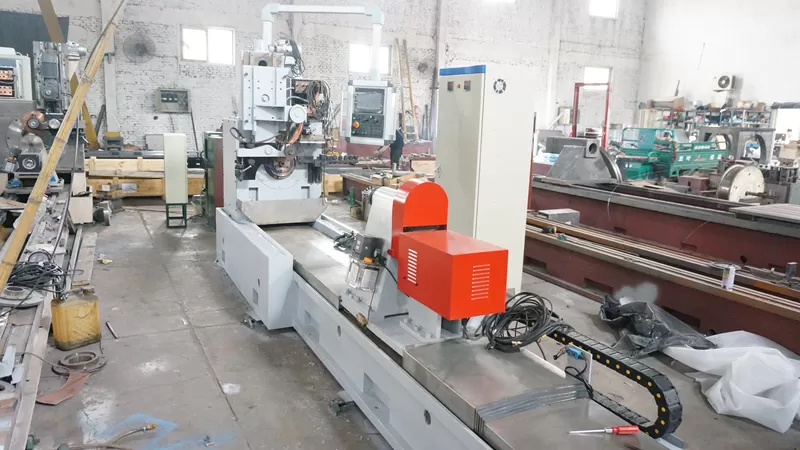

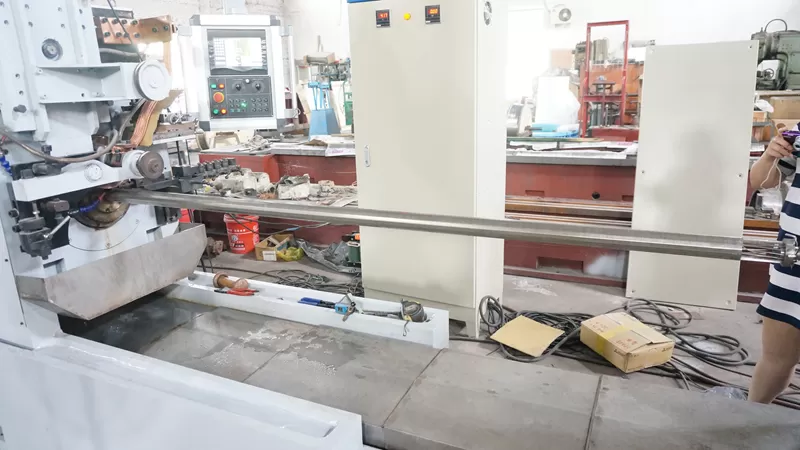

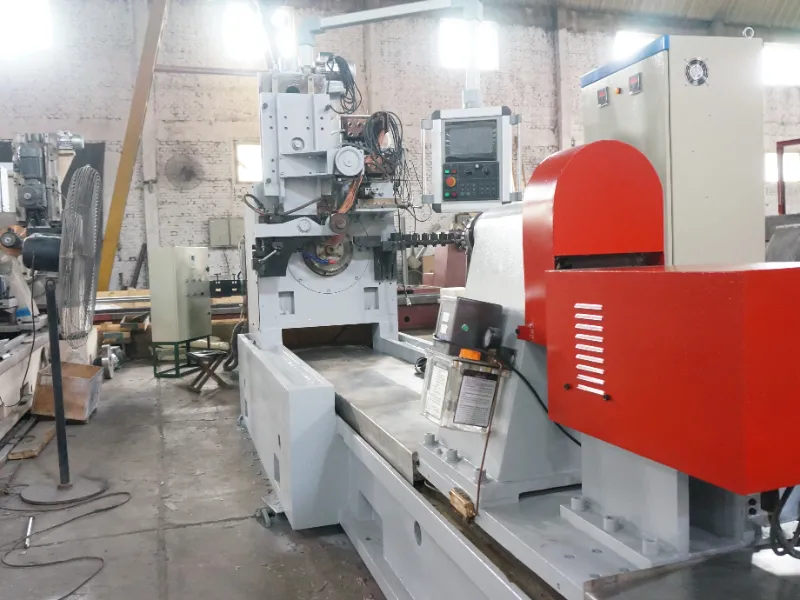

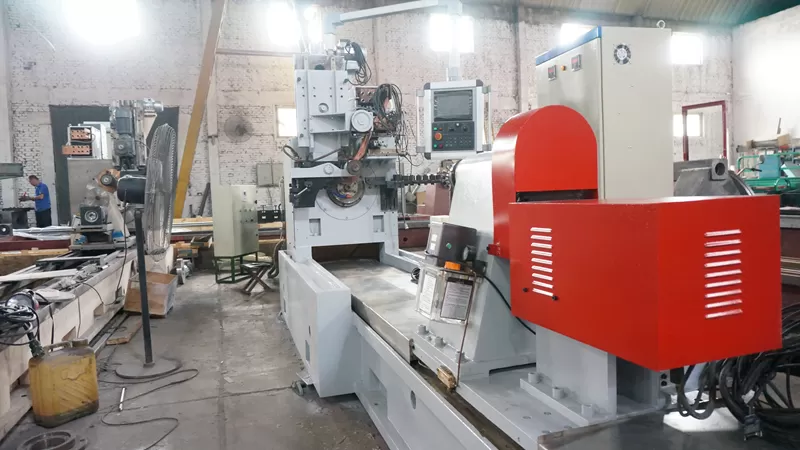

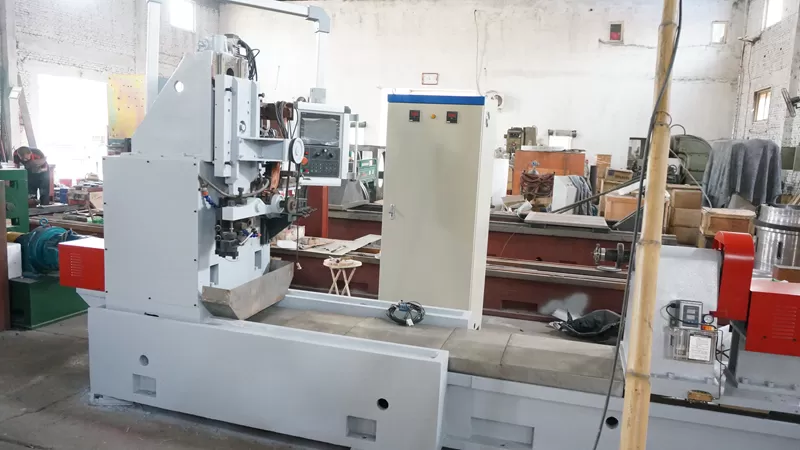

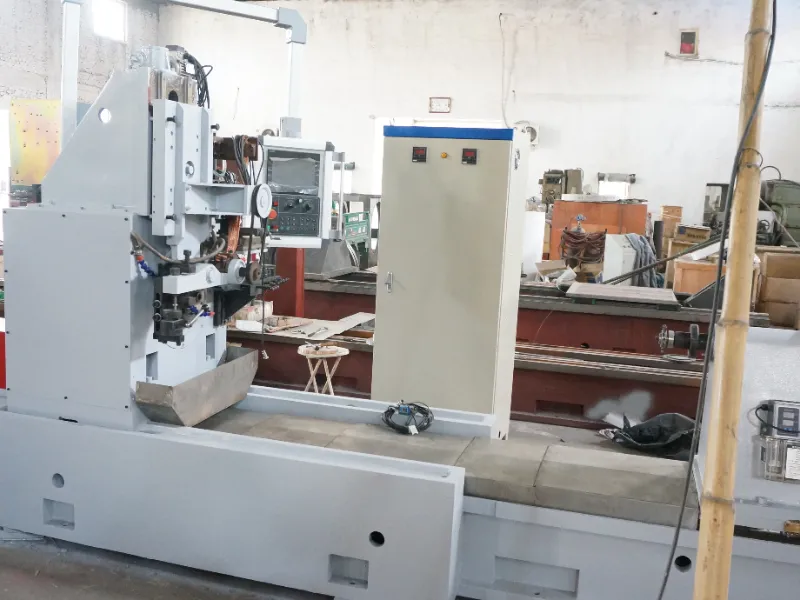

CNC machine for the manufacture of slit pipes HWJ200

The machine produced by our company features low noise, low energy consumption, stable performance, safe and reliable, easy to learn and operate, and stable product quality.

Other product categories:

Filter Element Welding Machine

Slot Filter Production Machine

Pipe welding Machine with wire winding

Slot Grating Machine

Inquire Now

Description

The machine can be designed and manufactured according to user specifications.

The machine is equipped with an electric control system, which can monitor and adjust the gap, running speed and length of the slotted pipes at any time without stopping.

The CNC system controls the servo motor to drive the ball screw, and the support plate connects with the linear guide to move the welding gap according to the instructions and ensure the uniformity of the welding gap.

The touch screen with adjustable height makes the modification and display of the equipment parameters convenient, intuitive and simple.

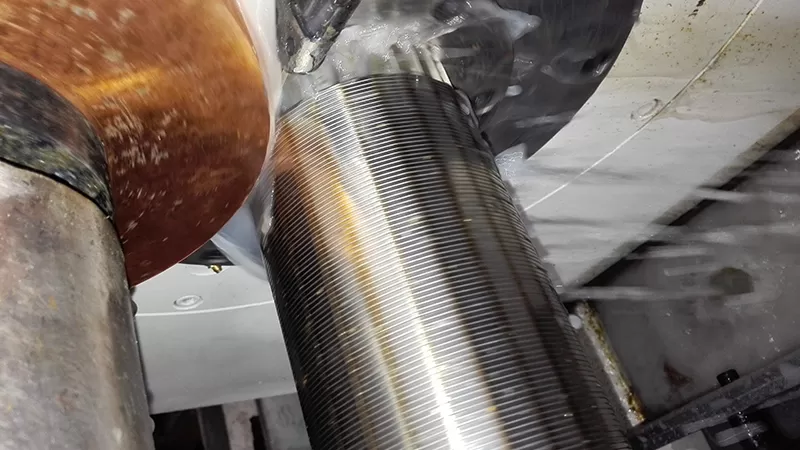

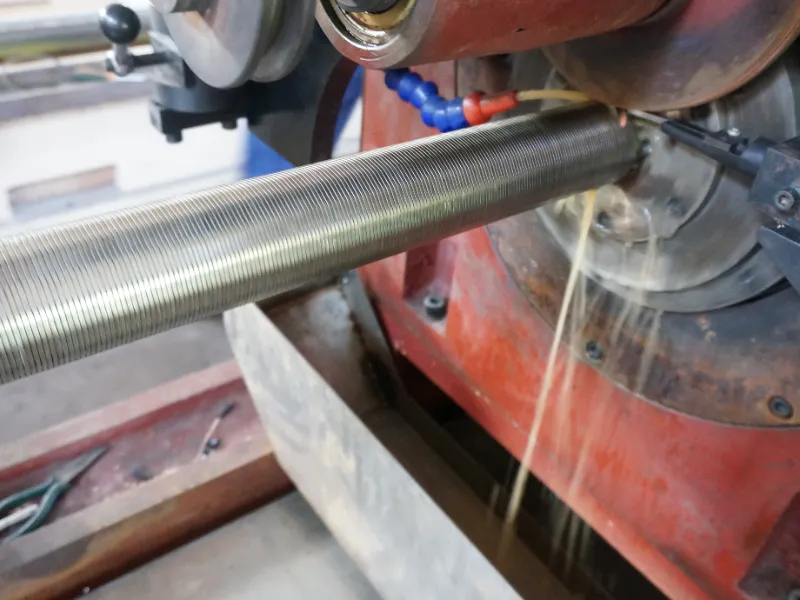

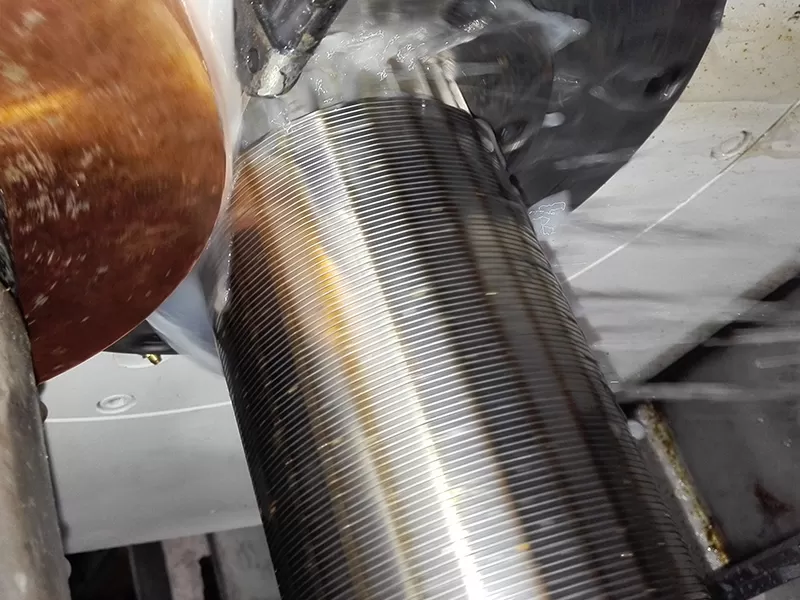

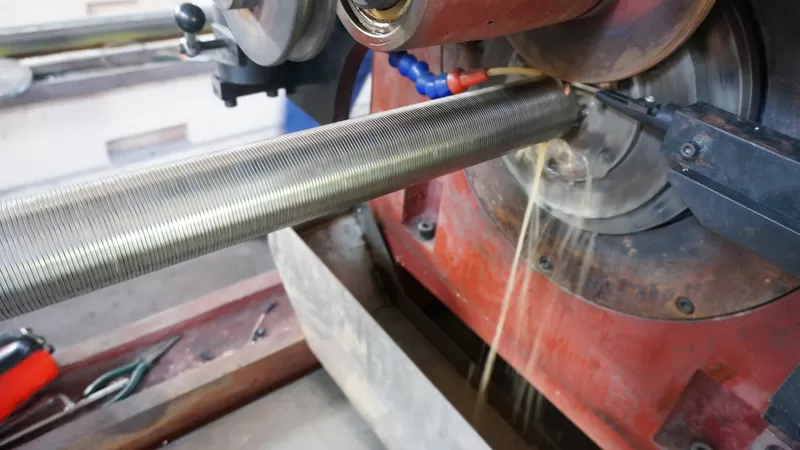

The machine is special for making Wedge Wire Screen, Filter Screen, V-shaped wire,Coanda Intake Screens, Cylindrical Screen, Rotary Screen, Flat Screen, Basket Screen,Looped Screen, Sieve Bend Screen, Intake Screen , for used in Water Treatment, Oil and Gas, Mining and Mineral, Food and Beverage, Pulp and Paper filtration field.

Main Technical Parameters

Type	HWJ200
The outer diameter of the slit pipes, mm	50-200
The length of the slit pipes, mm	2000-3000
Wire size, mm	0.75×1-2.2×2.5
Wire material	Carbon/stainless steel
Servo motor	3.5KWx3 pcs
Transformer power for welding, KVA	200
Welding speed, circle/min	6～40
The size of the gap, mm	0.10-16
Slot accuracy,mm	± 0.02
