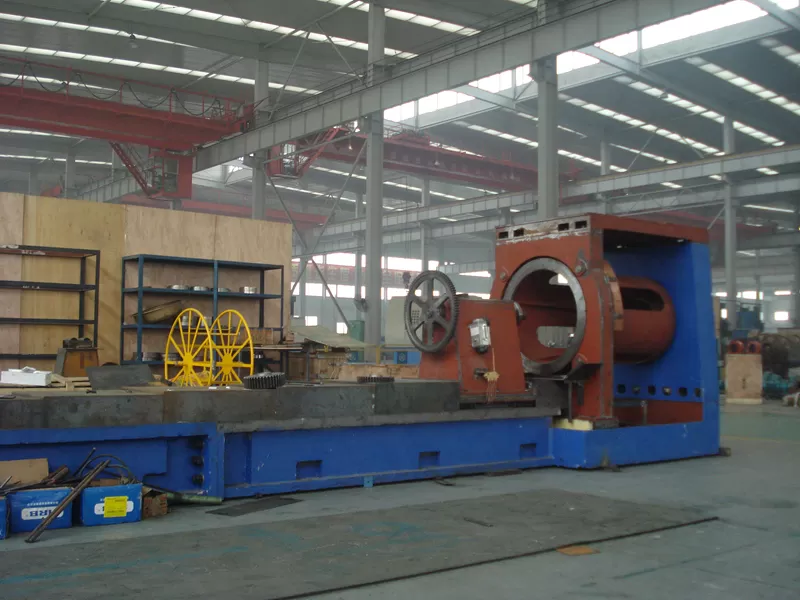

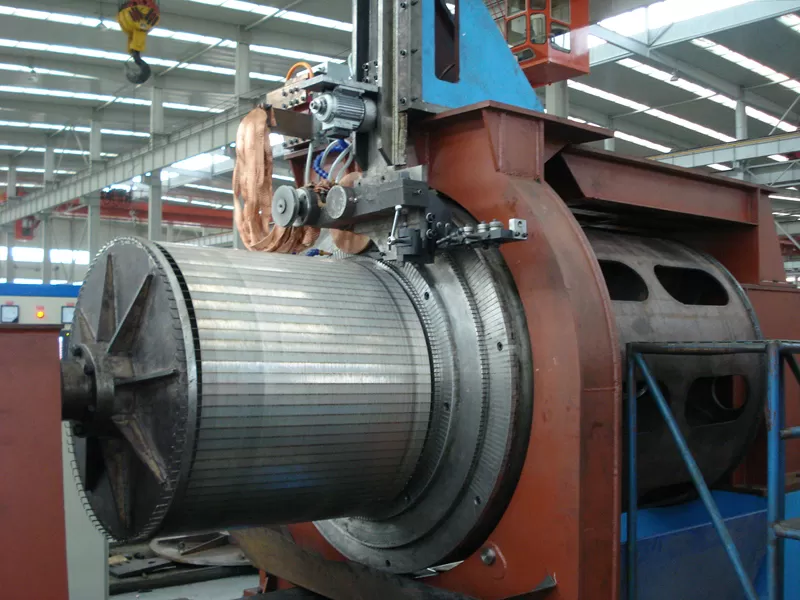

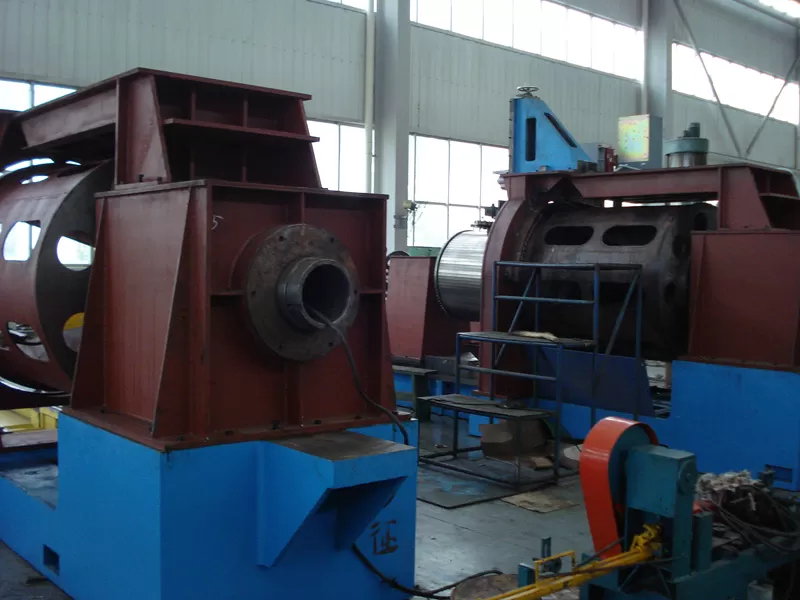

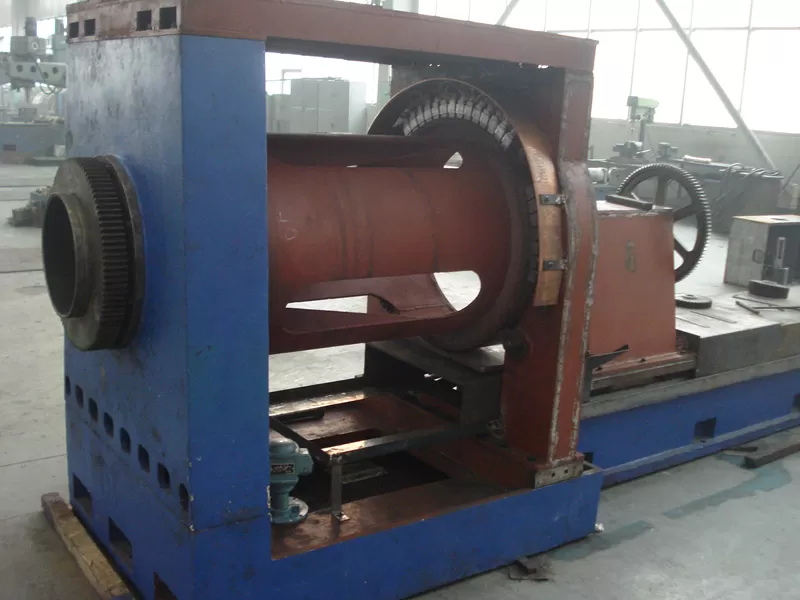

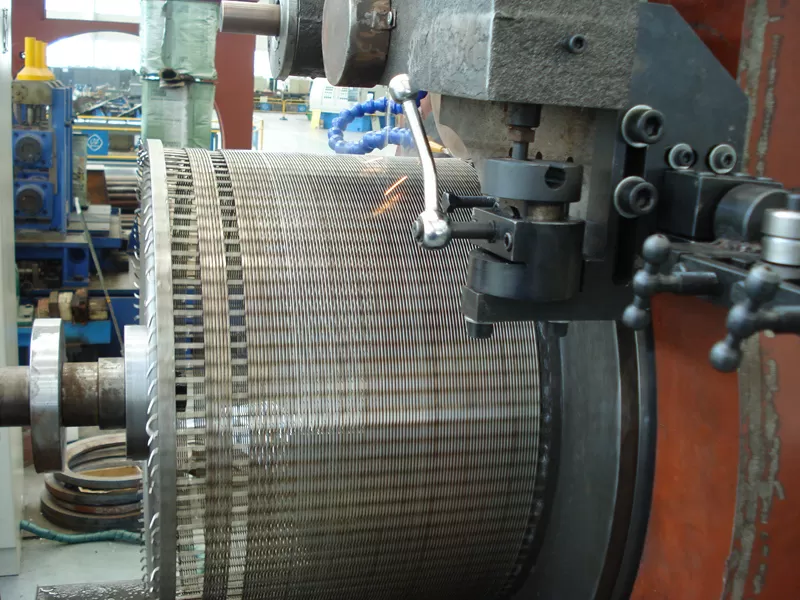

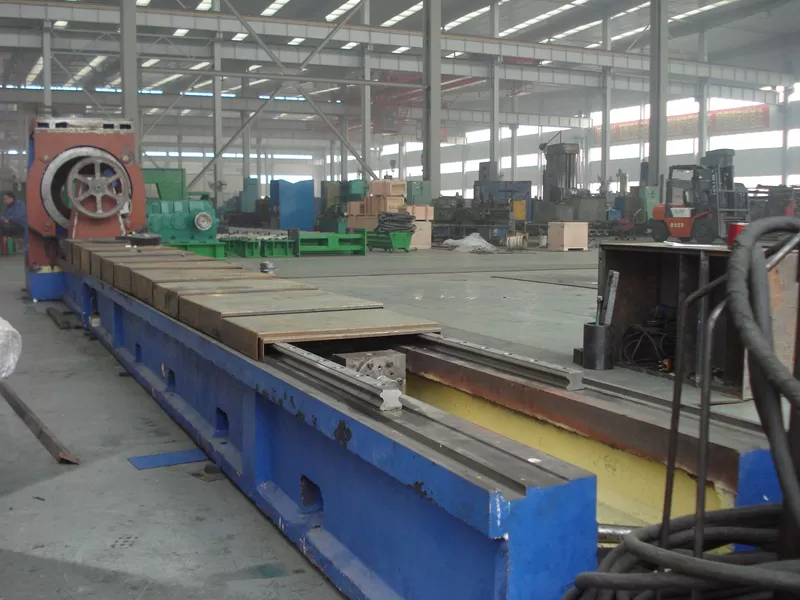

CNC Johnson wedge wire screen welding machine HWJ1000

The machine produced by our company features low noise, low energy consumption, stable performance, safe and reliable, easy to learn and operate, and stable product quality.

The machine can be designed and manufactured according to user specifications.

Other product categories:

Filter Element Welding Machine

Slot Filter Production Machine

Pipe welding Machine with wire winding

Slot Grating Machine

Inquire Now

Description

The machine is equipped with an electric control system, which can monitor and adjust the gap, running speed and length of the slotted pipes at any time without stopping.

The CNC system controls the servo motor to drive the ball screw, and the support plate connects with the linear guide to move the welding gap according to the instructions and ensure the uniformity of the welding gap.

The touch screen with adjustable height makes the modification and display of the equipment parameters convenient, intuitive and simple.

Main Technical Parameters

Type	HWJ1000
The outer diameter of the slit pipes, mm	300-1000
The length of the slit pipes, mm	3000-4000
Wire size, mm	1.5×2.5-3.7×6
Wire material	Углеродистая /нержавеющая сталь
Servo motor	7 kw 2 pcs+5 kw 1 pcs
Transformer power for welding, KVA	200
Welding speed, circle/min	6-20
The size of the gap, mm	0.15-16
Slot accuracy, mm	± 0.03
