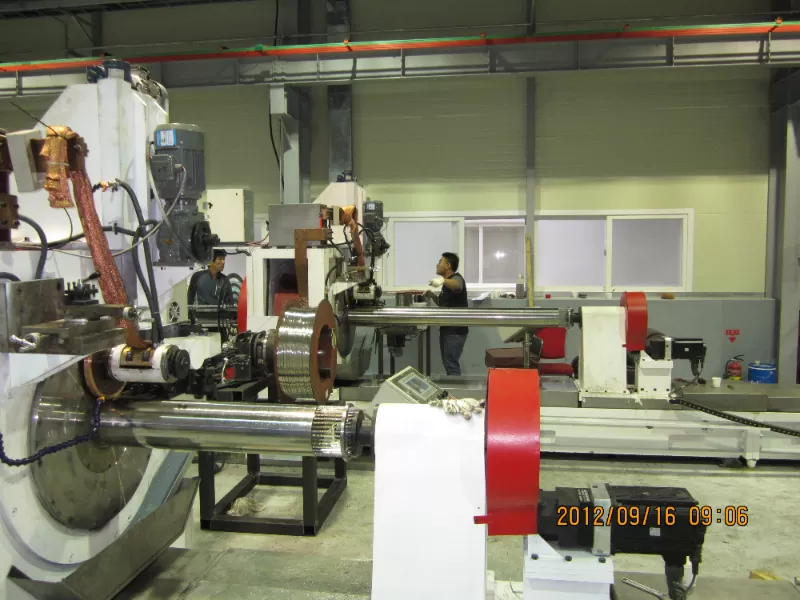

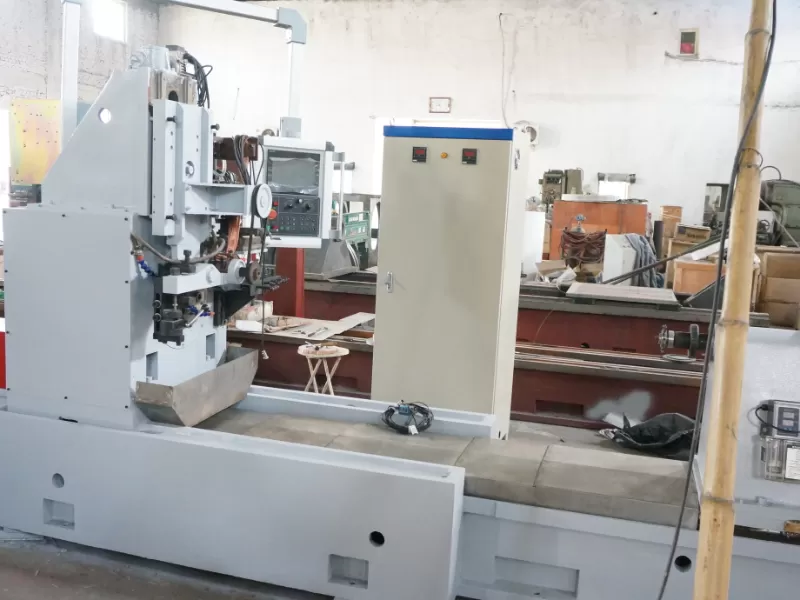

Machine for making return slotted pipes HWJ-FR300

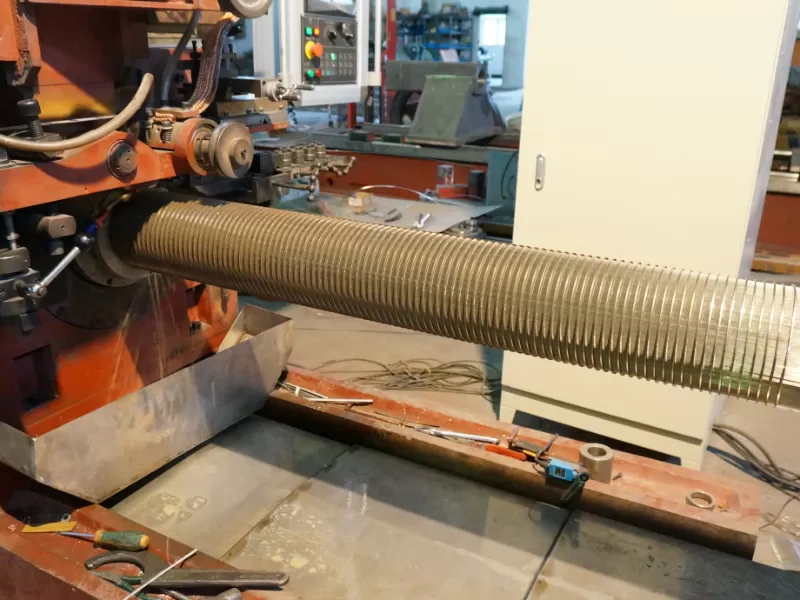

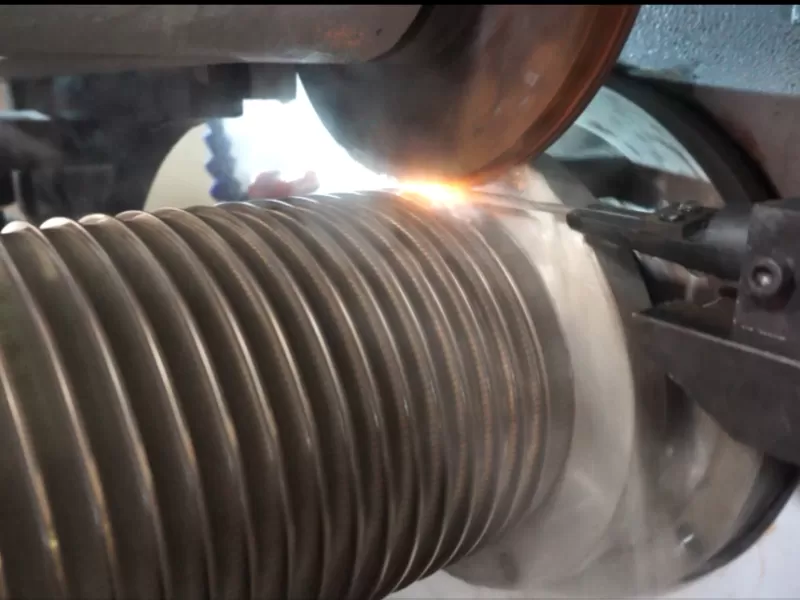

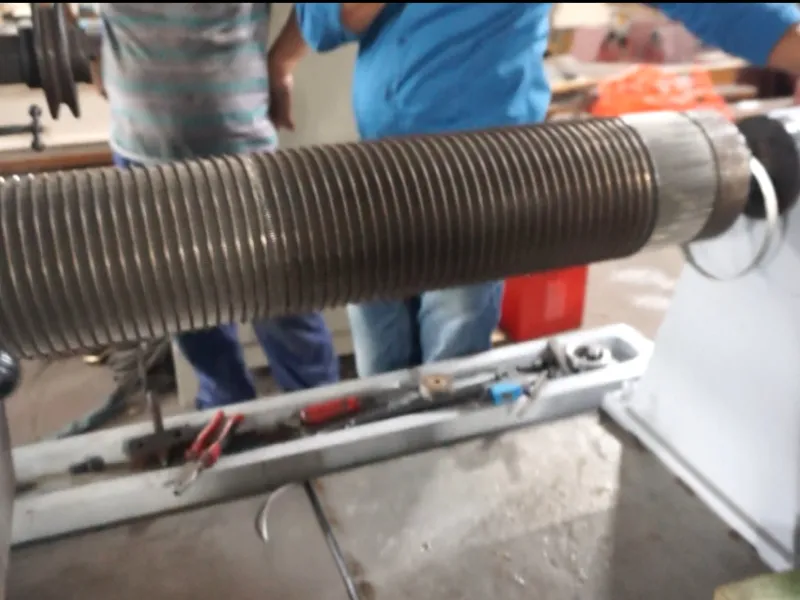

The reverse slot pipes produced by our machine are slot pipes with internal filter, which are formed by welding with wire winding at the same time. The welding is strong, the surface is neat and beautiful, and the roundness is high.

Other product categories:

Backwash Filter Making Machine

Backwash Slot Filter Manufacturing Machine

Johnson Screen Welding Machine

Wedge Wire Screen Tube Machine

Inquire Now

Description

Our products, wire welding machines, are of low noise, less power consumption, stable performance and safety. They can be designed and manufactured according to the specifications required by users. Machines adopt advanced electrical control system, with slot, running speed and length of the welded filter tube being watched and adjusted any time without stopping the machine.

The machine is special for making Wedge Wire Screen, Filter Screen, V-shaped wire,Coanda Intake Screens, Cylindrical Screen, Rotary Screen, Flat Screen, Basket Screen,Looped Screen, Sieve Bend Screen, Intake Screen , for used in Water Treatment, Oil and Gas, Mining and Mineral, Food and Beverage, Pulp and Paper filtration field.

Main Technical Parameters

Type	HWJ-FR300
The outer diameter of the slit pipes, mm	50-300
The length of the slit pipes, mm	6500
Wire size, mm	1.0×1.5-2.7×3
Wire material	Carbon/stainless steel
Servo motor	5KWx2pcs+3.5KWx1pcs
Transformer power for welding, KVA	200
Welding speed, circle/min	6-40
The size of the gap, mm	0.10-16
Slot accuracy,mm	± 0.02
