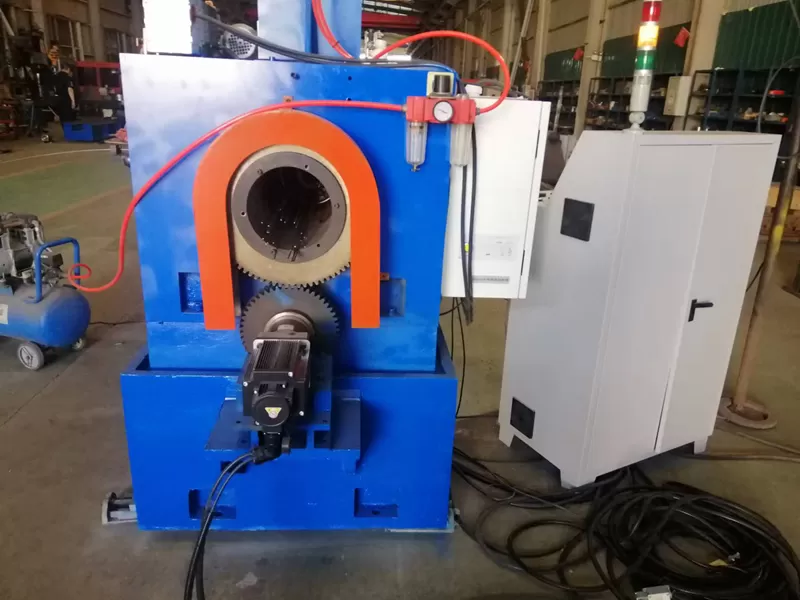

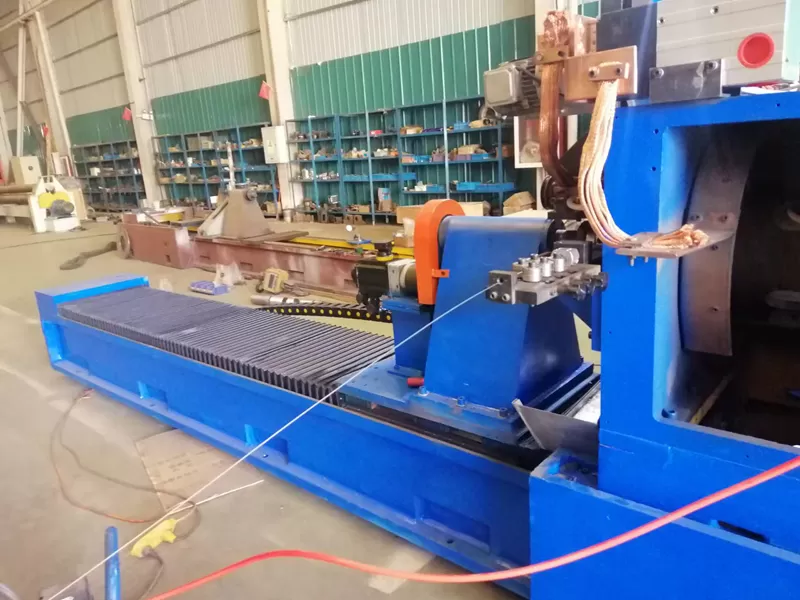

Round Slotted Tube Making Machine HWJ-CY300

The machine produced by our company features low noise, low energy consumption, stable performance, safe and reliable, easy to learn and operate, and stable product quality.

The machine can be designed and manufactured according to user specifications.

Other product categories:

Machine for making round slotted pipes

Johnson Screen Tube Welding Machine

Pipe filter screen welding machine

Slotted pipe making machine with high circular degree

Inquire Now

Description

The machine is equipped with an electric control system, which can monitor and adjust the gap, running speed and length of the slotted pipes at any time without stopping.

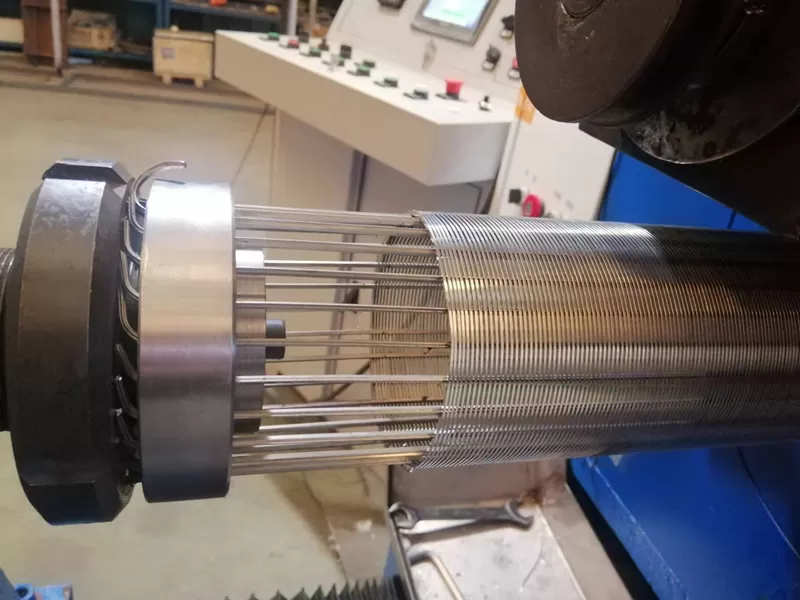

The CNC system controls the servo motor to drive the ball screw, and the support plate connects with the linear guide to move the welding gap according to the instructions and ensure the uniformity of the welding gap.

The touch screen with adjustable height makes the modification and display of the equipment parameters convenient, intuitive and simple.

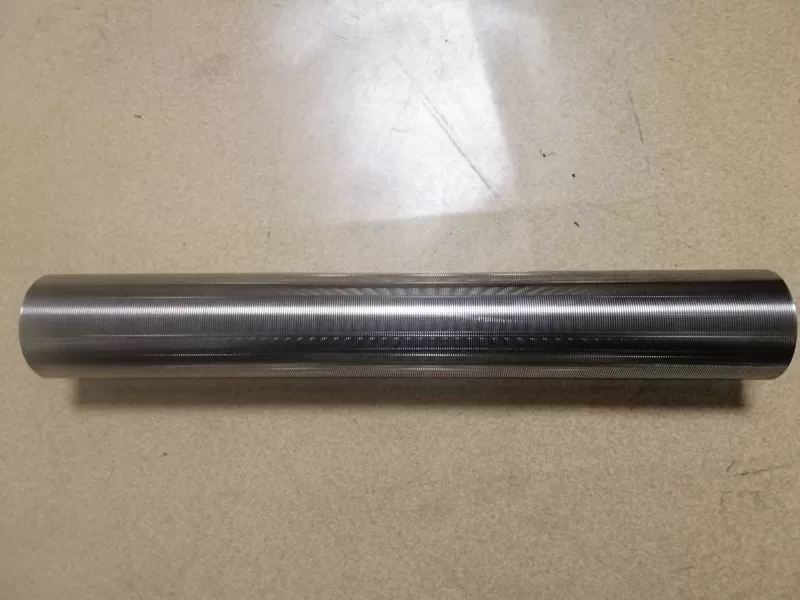

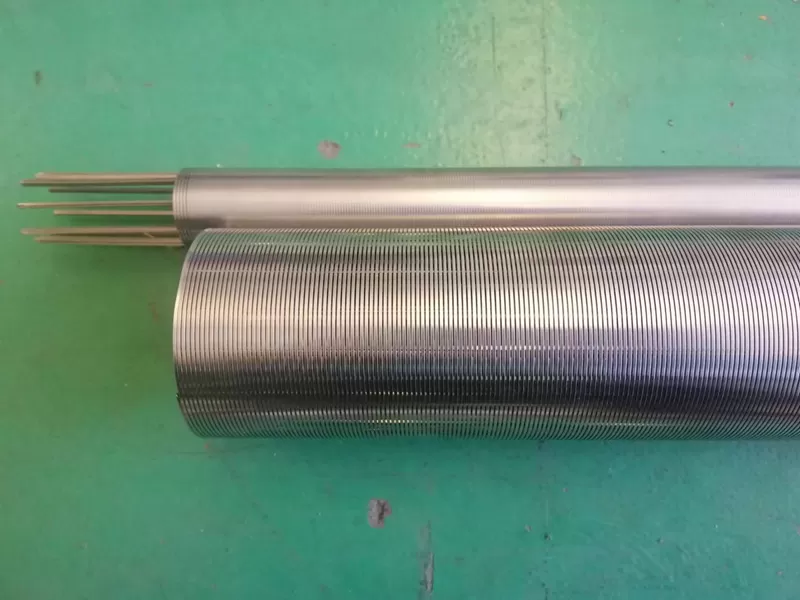

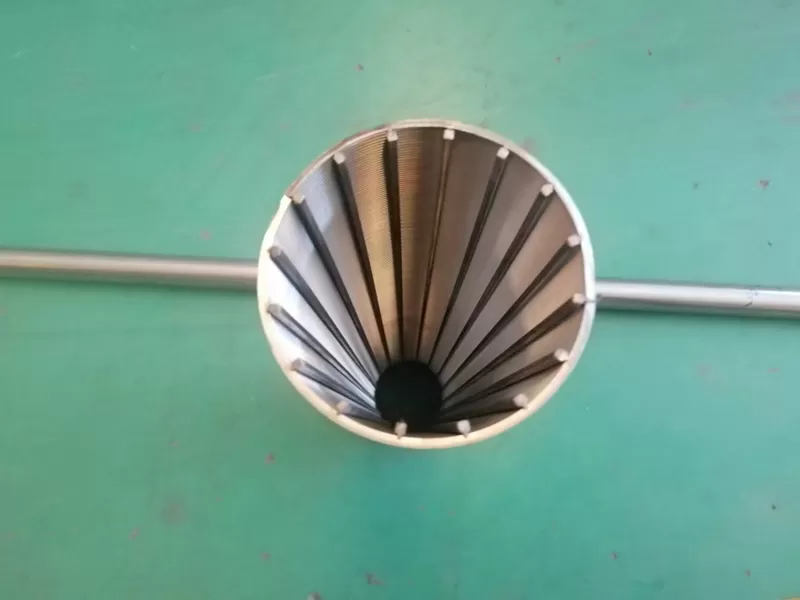

The round slotted pipes produced by our machine have high surface roundness and high welding precision. The round slotted pipes are used for products such as slotted drainage caps and drainage distribution device in chemical industry.

Main Technical Parameters

Type	HWJ-CY300
The outer diameter of the slit pipes, mm	20-300
The length of the slit pipes, mm	3000
Wire size, mm	1.0×1.5-2.7×3
Wire material	Carbon/stainless steel
Servo motor	3.5KWx3pcs
Transformer power for welding, KVA	200
Welding speed, circle/min	6-40
The size of the gap, mm	0.10-16
Slot accuracy, mm	± 0.02
