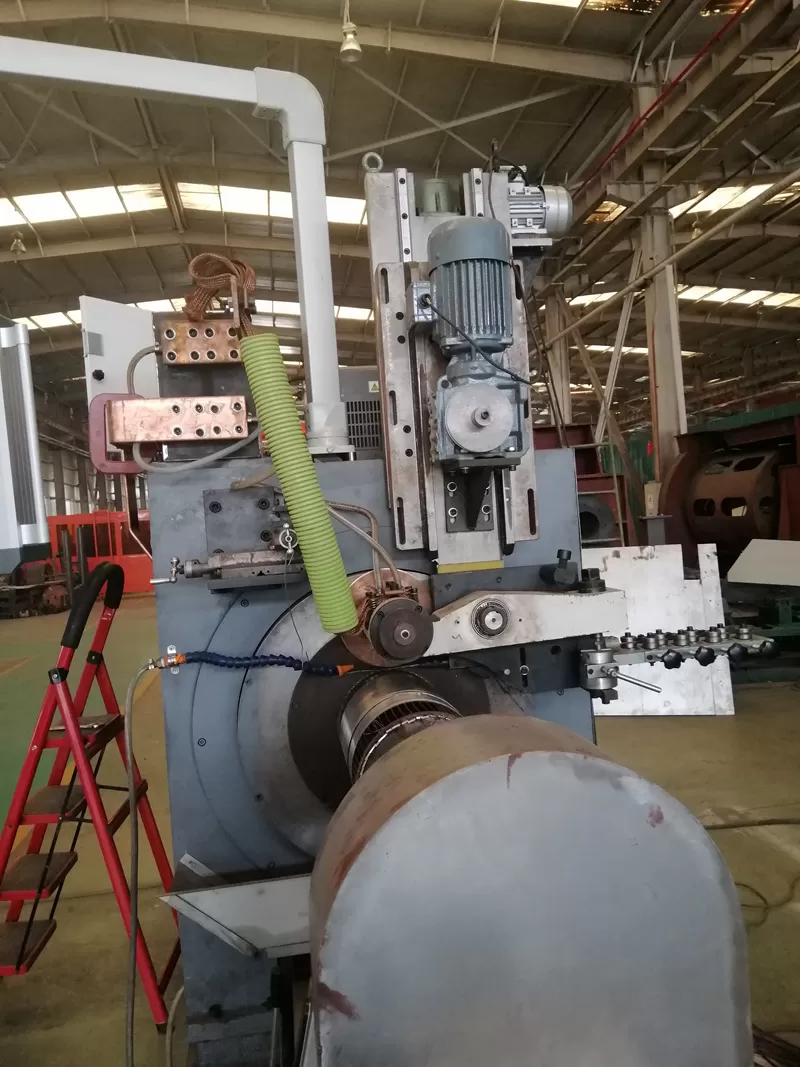

Machine for the production of slotted well filters HWJ 73-178*8000

The machine produced by our company features low noise, low energy consumption, stable performance, safe and reliable, easy to learn and operate, and stable product quality.

The machine can be designed and manufactured according to user specifications.

Other product categories:

Machine for winding filter element without base pipe

Well Wedge Wire Welding Machine

Slotted Borehole Pipe Manufacturing Machine

The wire-wound screen tube welding machine

Downhole sand screens Machine

Inquire Now

Description

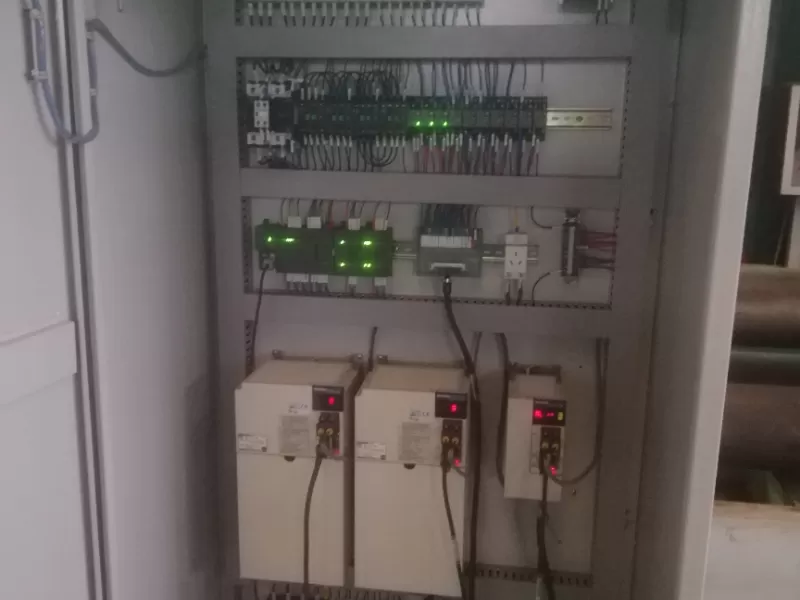

The machine is equipped with an electric control system, which can monitor and adjust the gap, running speed and length of the slotted pipes at any time without stopping.

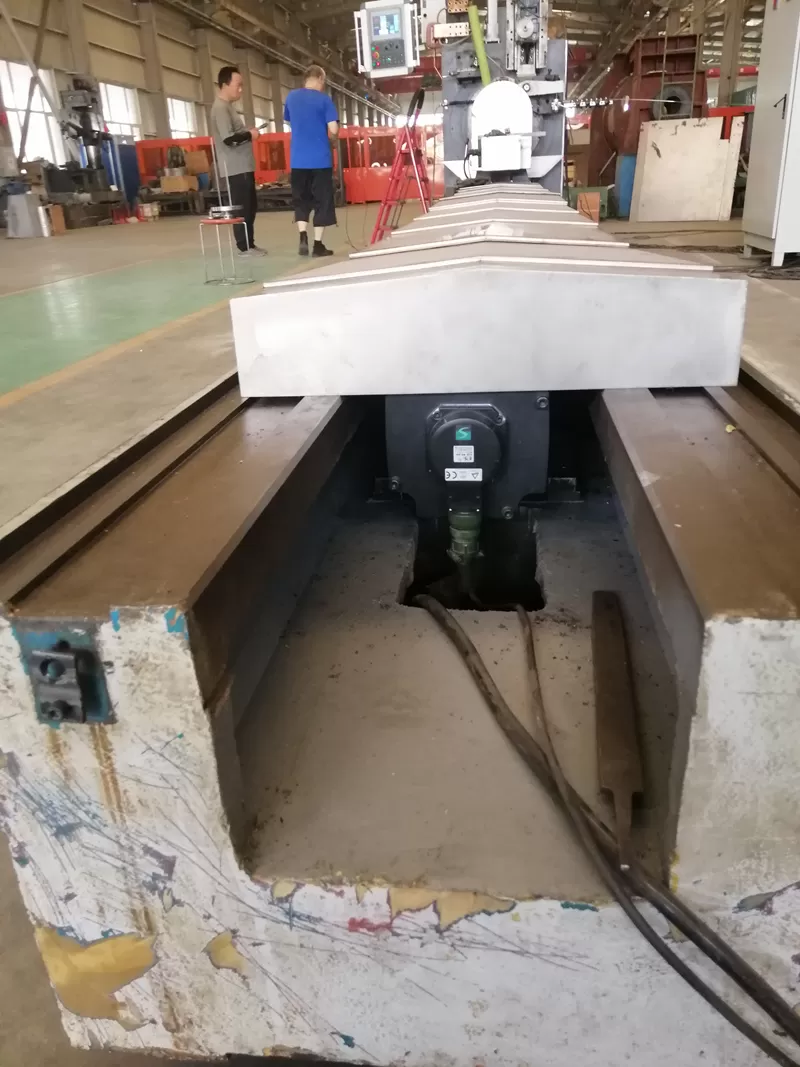

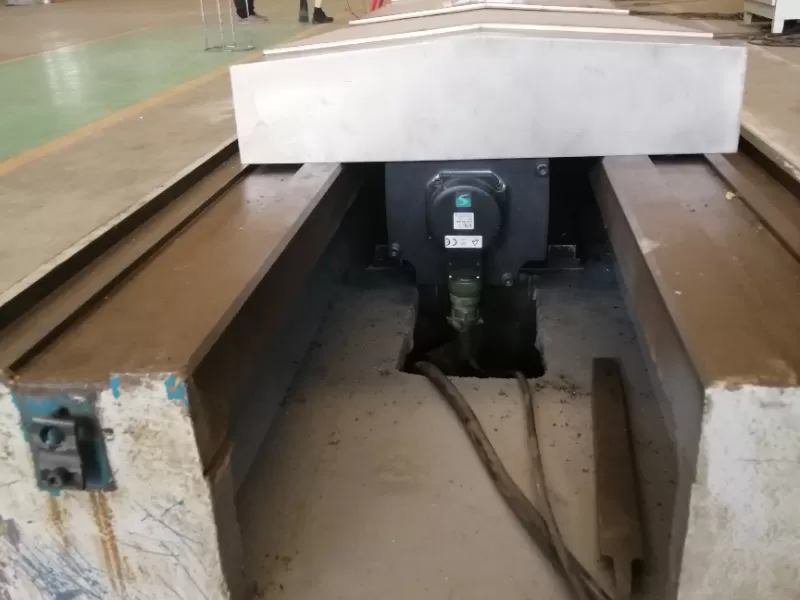

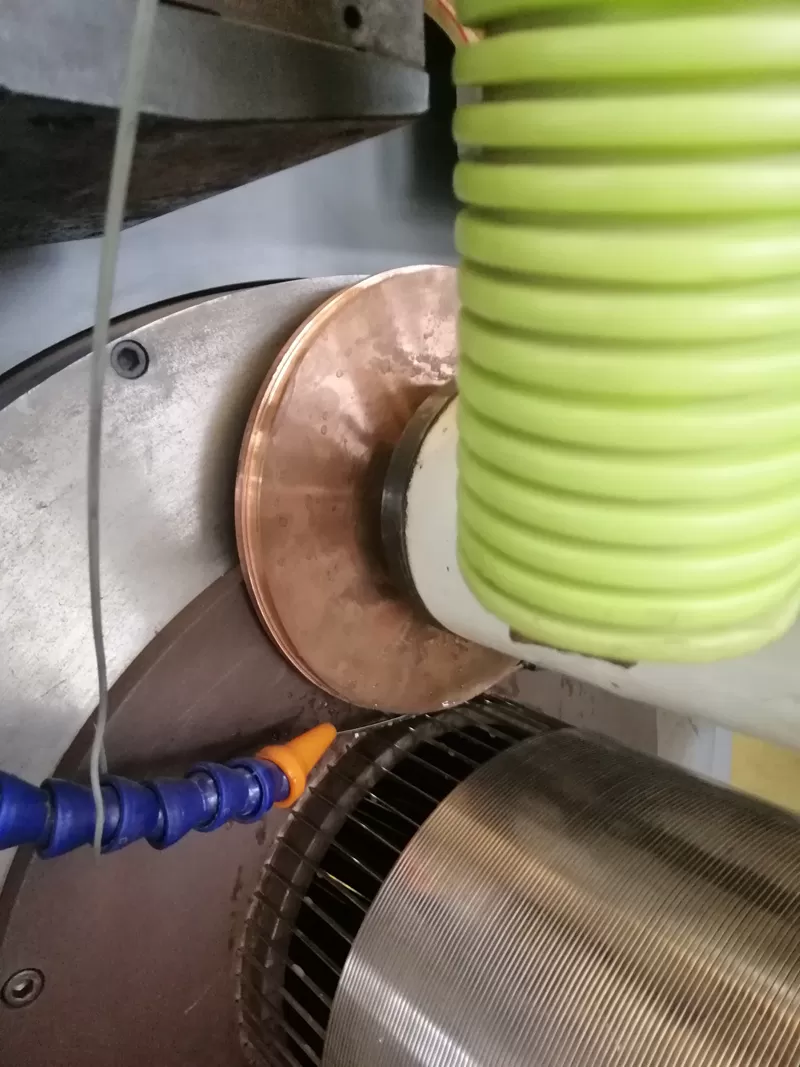

The CNC system controls the servo motor to drive the ball screw, and the support plate connects with the linear guide to move the welding gap according to the instructions and ensure the uniformity of the welding gap.

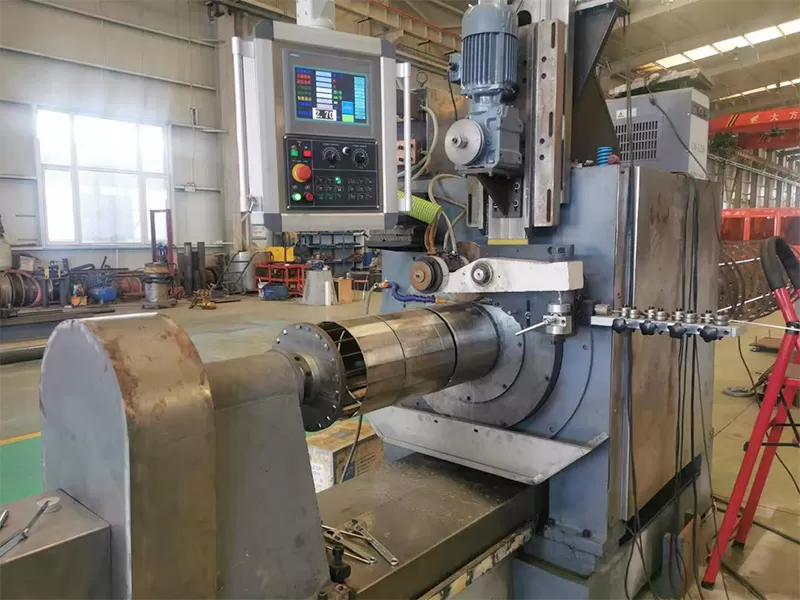

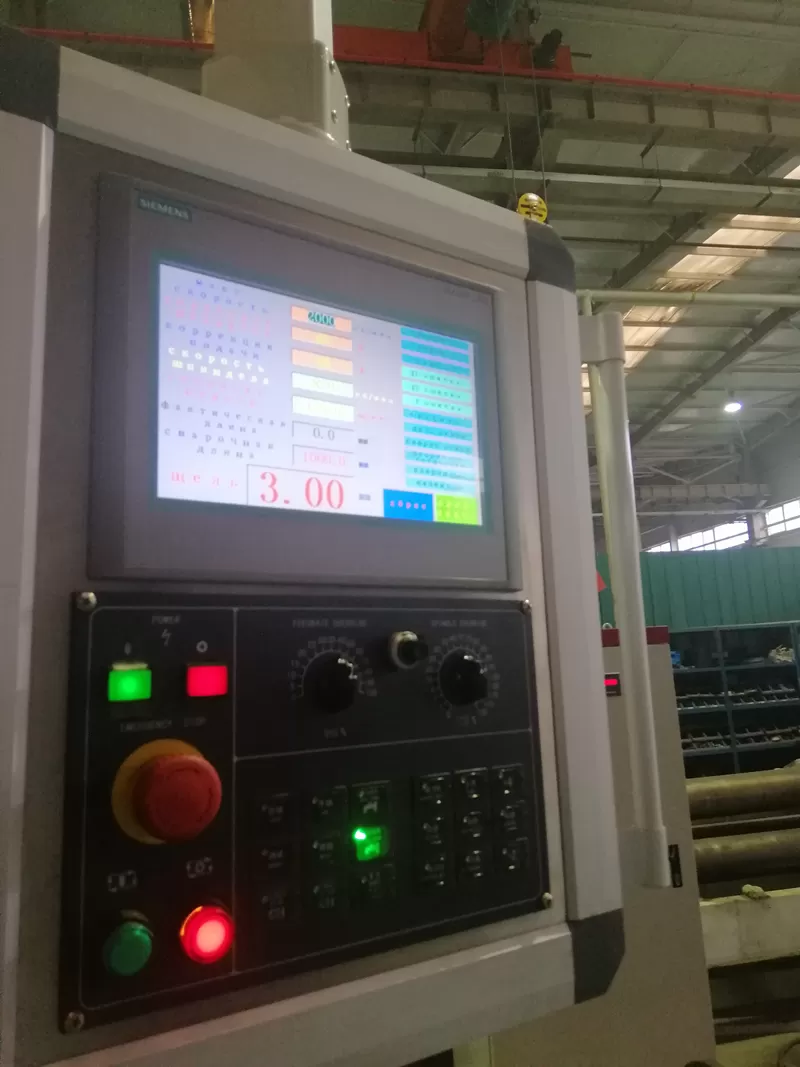

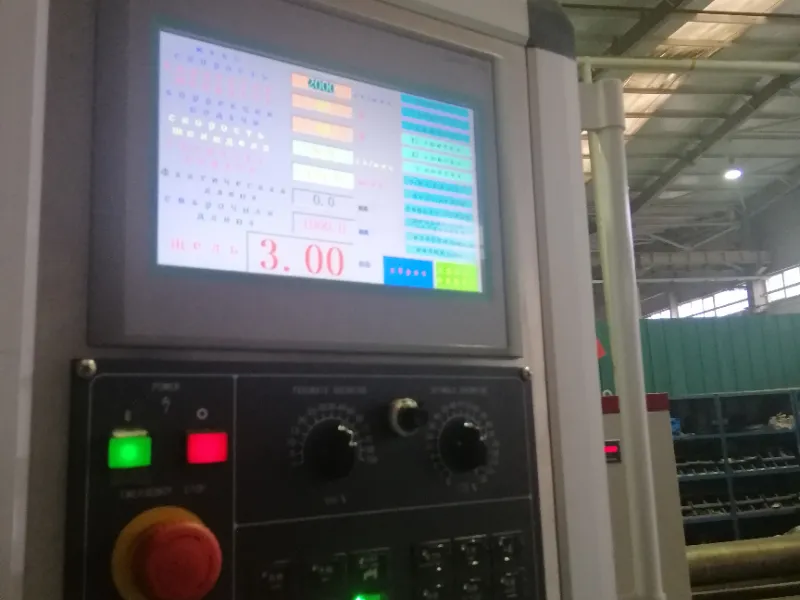

The touch screen with adjustable height makes the modification and display of the equipment parameters convenient, intuitive and simple.

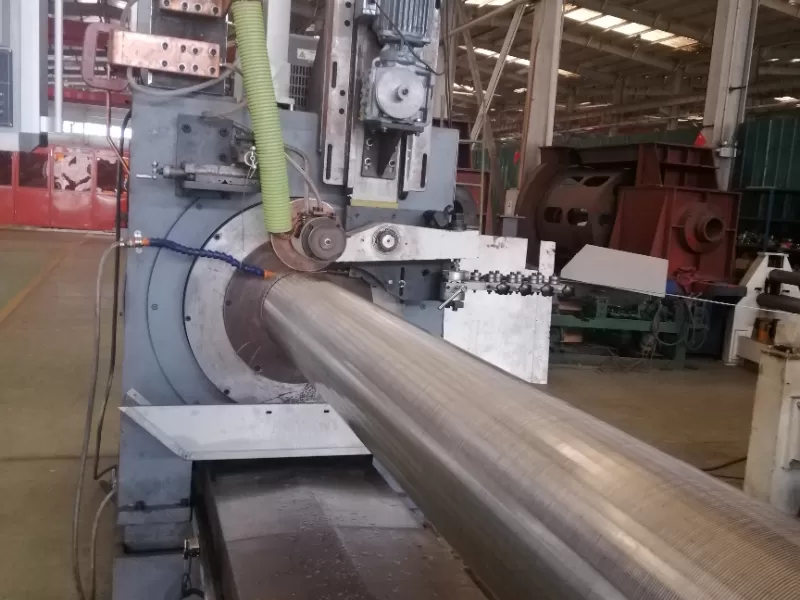

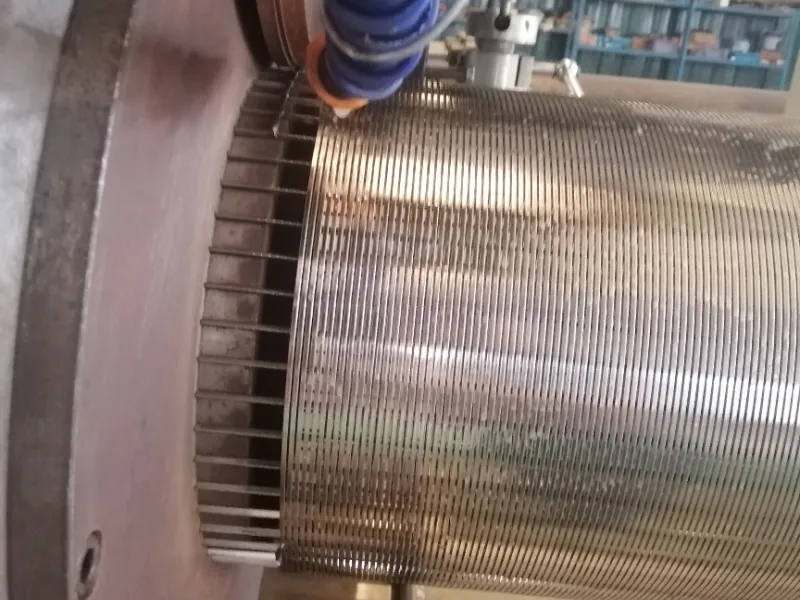

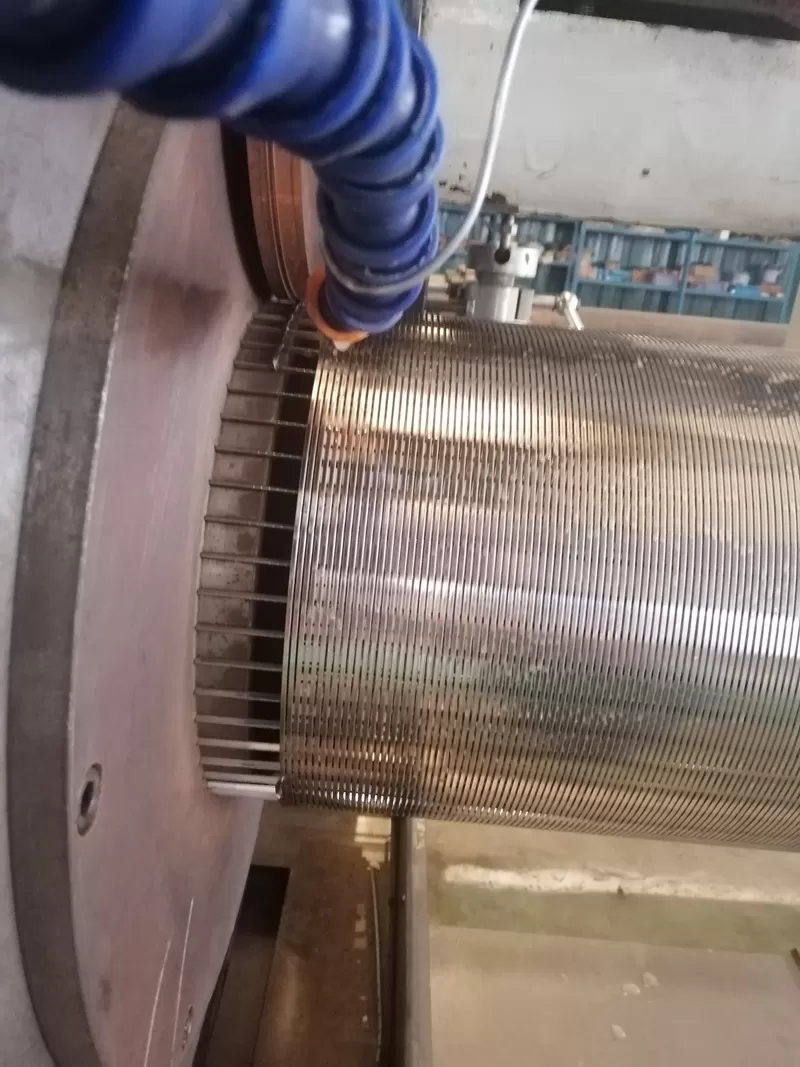

Our machine can produce slotted well filters for oil, water and gas wells. Slotted well pipes are used in the extraction and processing of oil, gas, in water intake wells to clean the fluid extracted from the formation from formation sand and other foreign impurities.

Main Technical Parameters

Type	*HWJ73-1788000**
The outer diameter of the slit pipes, mm	73-178
The length of the slit pipes, mm	Max 8000
Wire size, mm	0.75×1-2.2×2.5
Wire material	Carbon/stainless steel
Servo motor	7.5KW
Transformer power for welding, KVA	200
Welding speed, circle/min	6～40
The size of the gap, mm	0.10-16
Slot accuracy,mm	± 0.02
