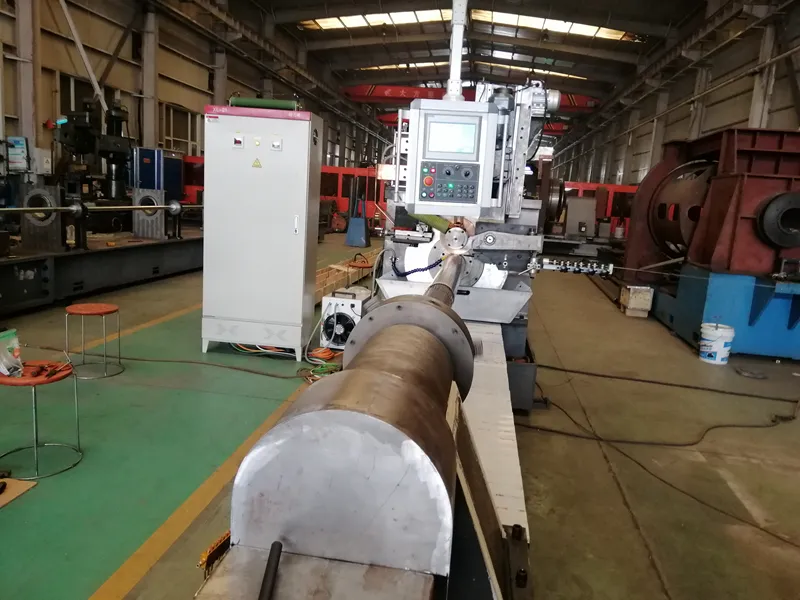

Wedge wire wrap pipe welding machine SYHWJ 200*12000

The machine produced by our company features low noise, low energy consumption, stable performance, safe and reliable, easy to learn and operate, and stable product quality.

The machine can be designed and manufactured according to user specifications.

Other product categories:

Direct wrap-on pipe screen Machine

Downhole sand screens Machine

Johnson screen pipe welding machine

Machine for winding a filter element onto a base pipe

Inquire Now

Description

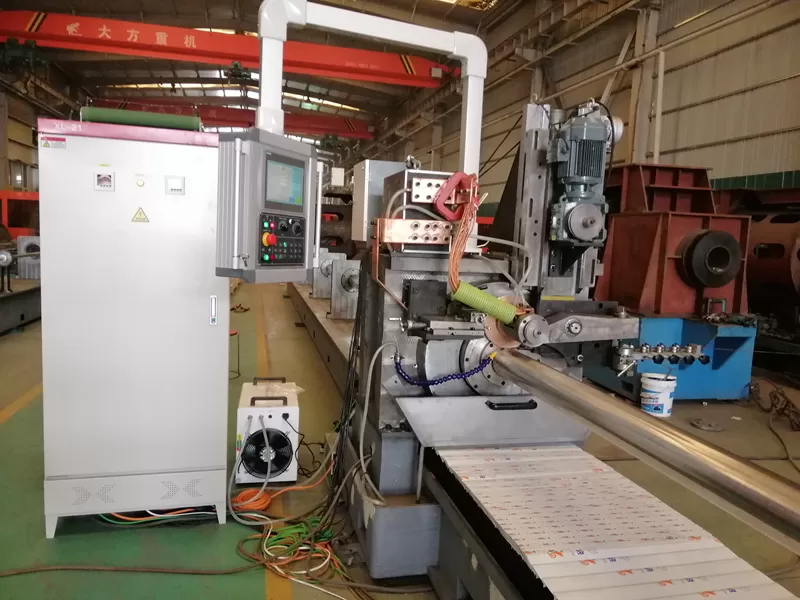

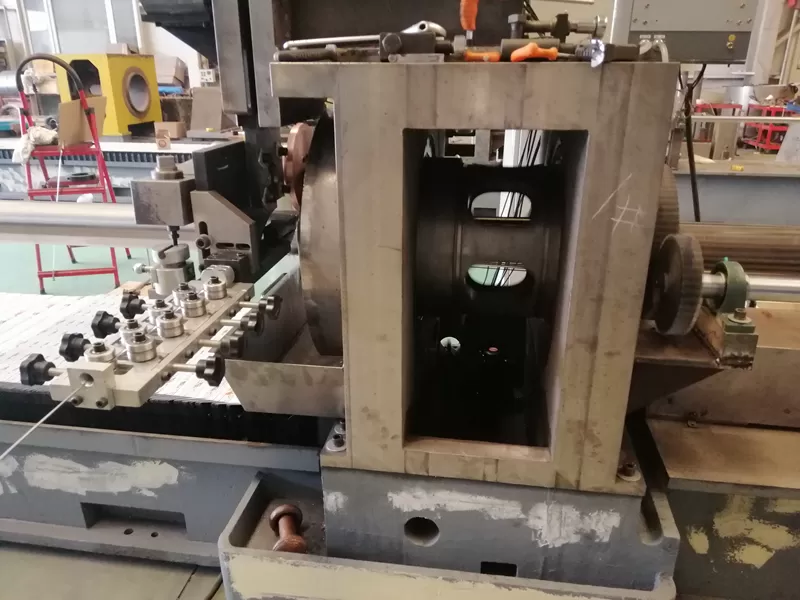

The machine is equipped with an electric control system, which can monitor and adjust the gap, running speed and length of the slotted pipes at any time without stopping.

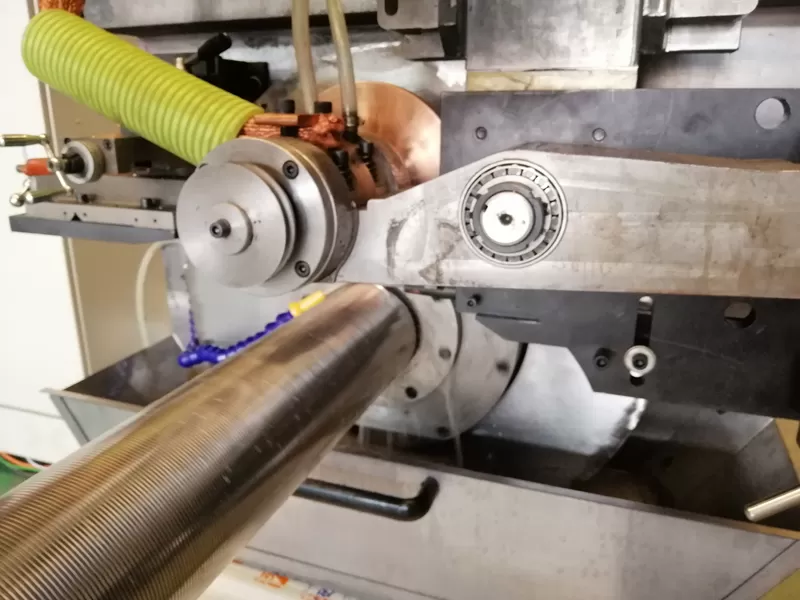

The CNC system controls the servo motor to drive the ball screw, and the support plate connects with the linear guide to move the weld gap according to the instructions and ensure the uniformity of the weld gap.

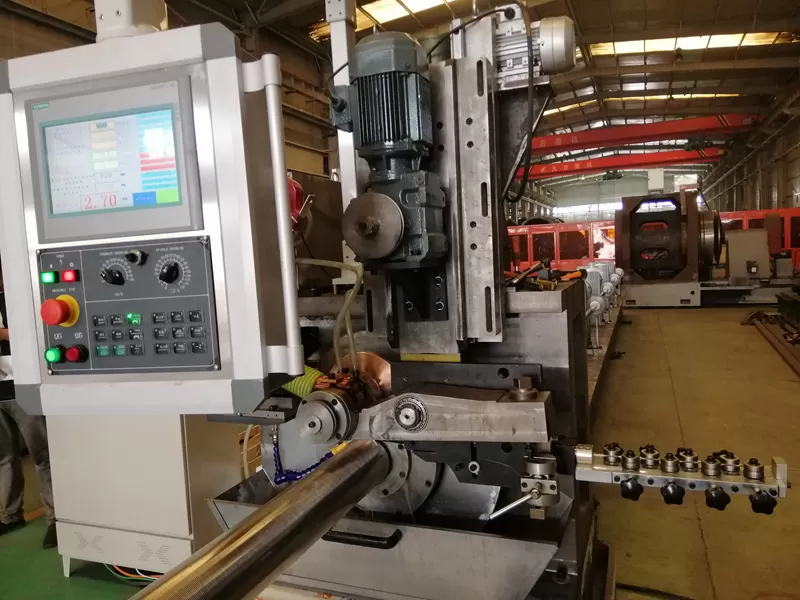

The touch screen with adjustable height makes the modification and display of the equipment parameters convenient, intuitive and simple.

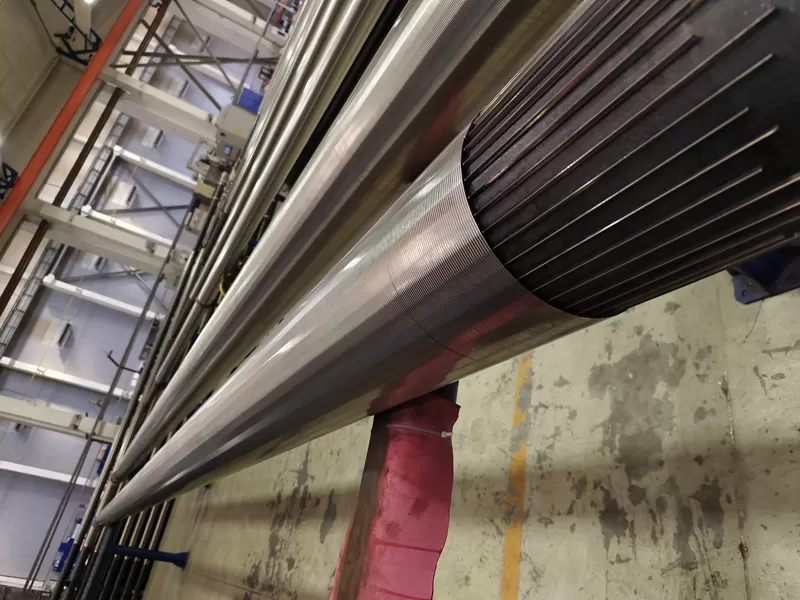

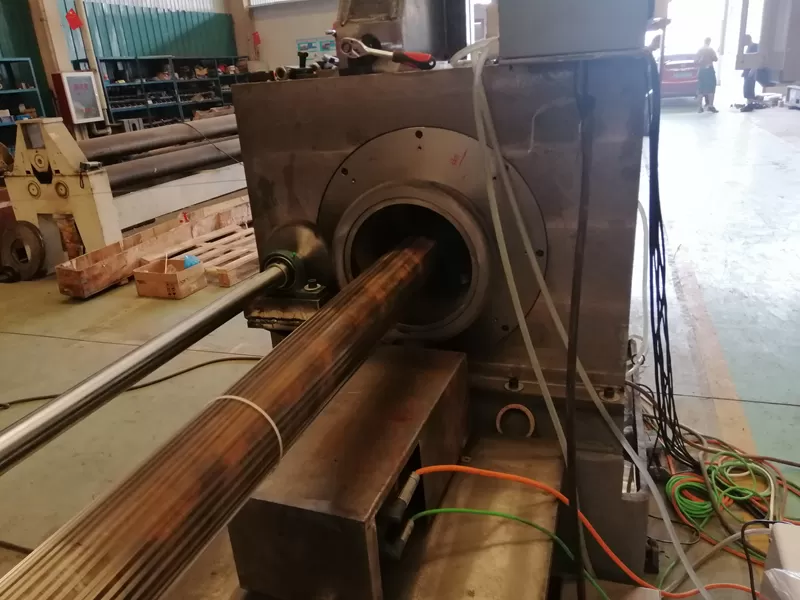

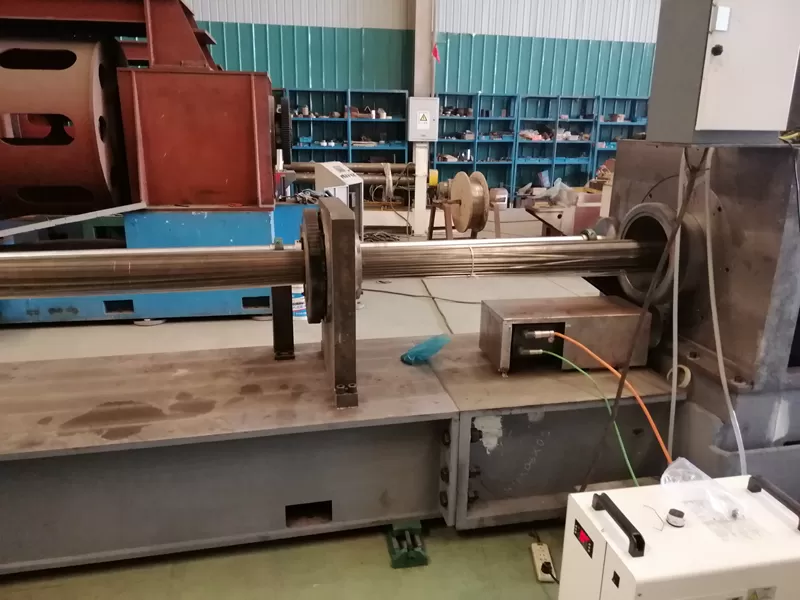

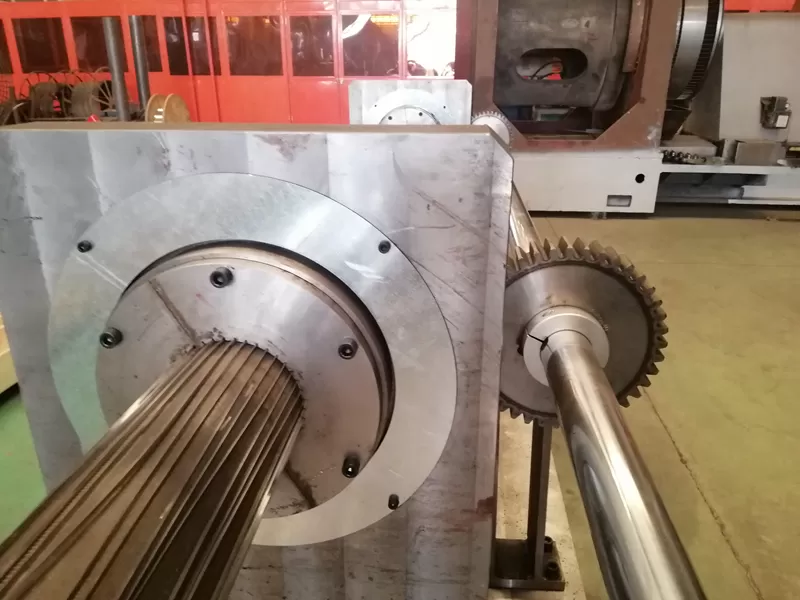

The machine's capabilities include winding the filter element onto a base pipe with pre-installed stringers, with tension, production efficiency is significantly increased.

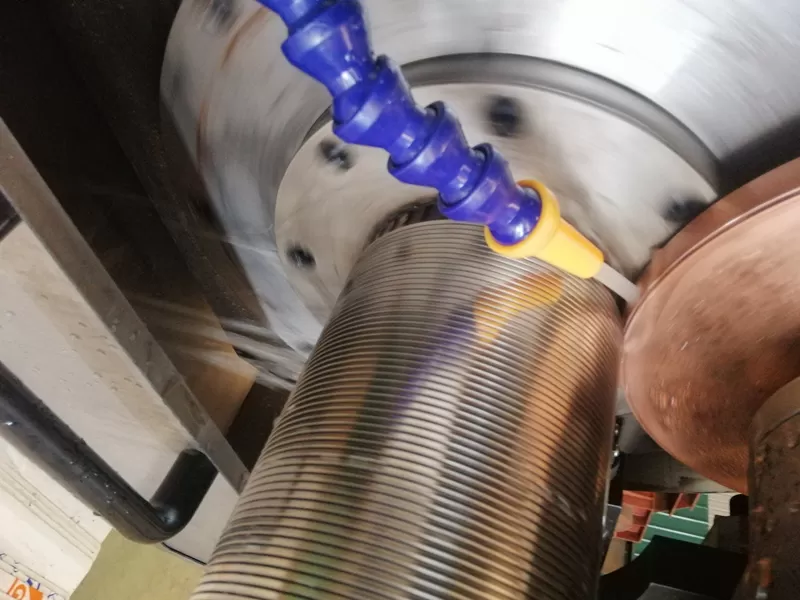

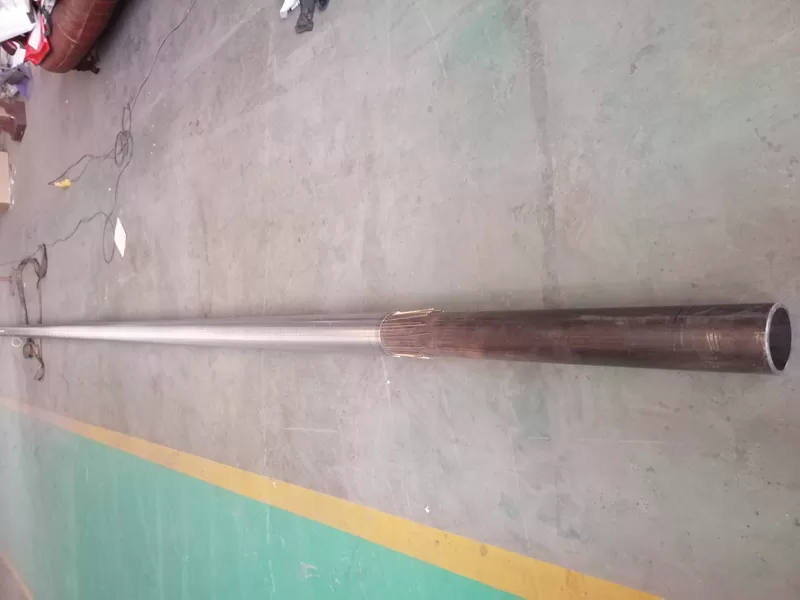

Our direct winding machine can weld wire filter elements on the surface of perforated steel casing pipe, which is used in the operation of oil and gas field wells and water intake.

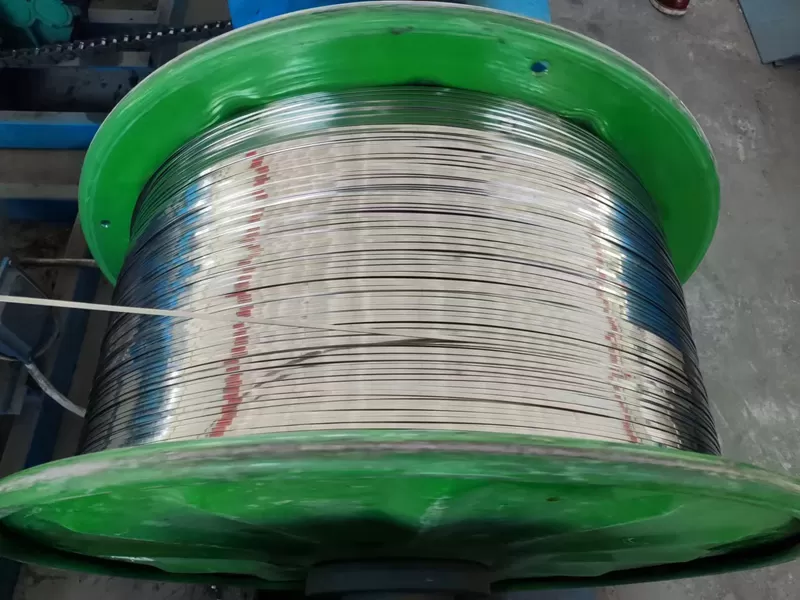

Filter material-stainless steel AISI304,AISI304L,AISI316,AISI316L and others.

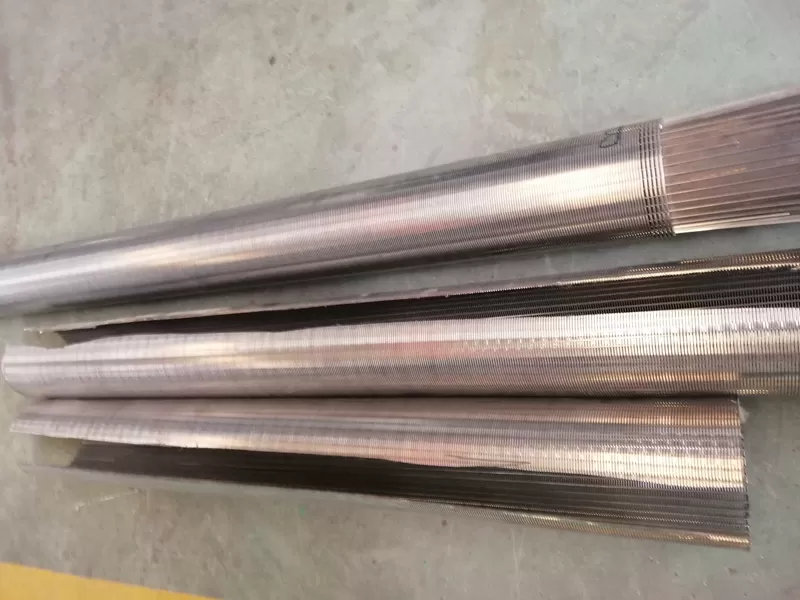

Slotted well filters used in oil exploration can prevent sand from entering, reduce the amount of heavy maintenance of oil wells, and improve the strength of oil well, integrity and stability of sand protection.

Main Technical Parameters

Main Technical Parameters
1	Minimum base pipe diameter	mm	50
2	Poppy. base pipe diameter	mm	200

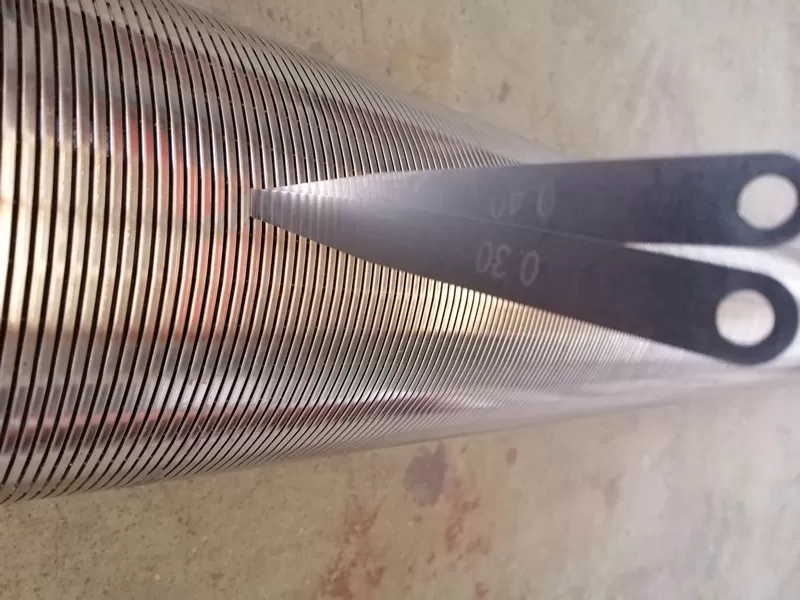

3	Minimum slot width	mm	0.1
4	Maximum slot width	mm	40
5	Limit deviations of the slot gap	mm	±0.02
6	Maximum winding length of the filter part	mm	12000
7	Nominal welding speed	rpm	0-40
8	Max.pipe length	m	13
9	Mains voltage	V	380
10	Network frequency	Hz	50

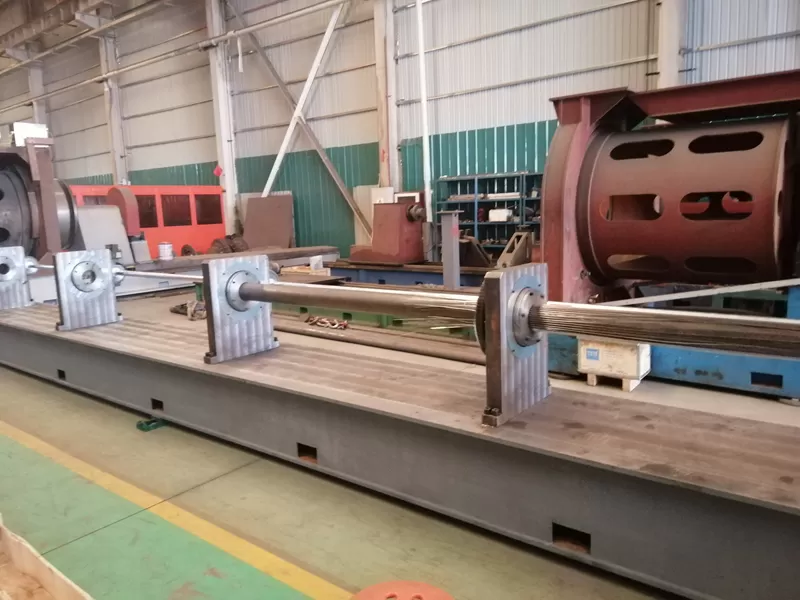

11	Bed material	-	Cast iron
12	Number of bed parts	PC	3
13	PLC	-	Mitsubishi(or Siemens)
14	Touch screen control	-	Mitsubishi(or Siemens)
15	Spindle servo motor	kW	7.5Mitsubishi(or Siemens)
16	Wire tension shaft servo motor Mitsubishi	kW	5
17	Synchronous servo motor for shaft Mitsubishi	kW	7.5
18	Transformer power for welding	Chengtai China	AC 380V,50-60Hz,W-200KVA
19	Gearbox		Kefeng China
20	Drum bearings		ZWZ China
21	Rail guides		HIWIN
22	Ball Screw (Ball Screw)		HIWIN
23	Wire shapes		Triangular section-V-shaped profilePentagonal section
